Product Highlights

Features

Designed in the USA: Experience the excellence of American ingenuity. Stinger products are proudly designed by our innovative engineers in California, USA.
Flush Mount: This head unit seamlessly integrates into the vehicle's dashboard, creating a clean and polished look. This design maximizes space efficiency, enhances durability, and provides a factory-like appearance.

MFi-Certified Wireless & *Wired Smartphone Integration: Access your phone's smart features by connecting through wired or wireless Apple CarPlay, Android Auto, and hands-free Bluetooth.
- *When connecting Apple Car Play or Android Auto via USB, only USB-C connection is compatible.
Plug-and-Play Capability: Users can easily connect the Stinger HORIZON10 Radio Kit to their vehicle's existing wiring harness without needing additional modifications or complex wiring procedures. This ensures a hassle-free installation experience, saving time and effort.

High-Resolution Touchscreen: 10.1" 1280x800 HD screen with anti-glare, anti-reflection, anti-fingerprint film protection.
Micro-SD Card Slot for iGO Navigation: Optional iGO Navigation integration offers reliable, offline maps. (SD Card Sold Separately)

IP65 Weather Resistant Display: Optically bonded for dust and moisture protection*.
- *Radio Chassis is not IP rated.

On-Screen Accessory Control: 4 outputs allow you to control up to 4 accessories without additional switches.

Advanced Audio Features: Enhance the overall listening experience with a 15-band equalizer, capable of saving up to six custom presets, and enjoy superior Hi-Fi audio playback.
SiriusXM-Ready: Offers a vast array of music, sports, and entertainment options (SiriusXM Connect Vehicle Tuner sold separately: SXV300).
Multiple Input Options: 3 USB Inputs (1-USB-C and 2 USB-A ports), HDMI input, and AV In.

HD Radio: Enjoy more local stations with clear digital sound, no static, and no subscription fees. Get access to additional content without the hassle of monthly payments.
Accessory Control: Easily control up to four accessories on-screen with customizable icons (relays needed, SwitchHub recommended).

AudioControl Compatibility:On-screen control of AudioControls's DM series processors and amplifiers for instant tweaks without the need to connect to a laptop or tablet.
ENLIGHT10 Lighting Integration: Illuminate your ride and benefit from superior visibility with dynamic LED lighting that can be controlled on-screen.

Description

Elevate your Toyota Tacoma driving experience with the Stinger HORIZON10 10" Radio Plug-and-Play Kit. This state-of-the-art kit showcases an upgraded 10.1" HD touchscreen that resists glare, reflection, and fingerprints, offering a crystal-clear view under any condition. Stay effortlessly connected with enhanced Bluetooth and the seamless integration of wireless Apple CarPlay and Android Auto. Whether cruising through city streets or tackling rugged trails, the IP65 weather-resistant display is engineered for any adventure. Immerse yourself in rich, clear, and detailed audio with Hi-Fi sound quality, and access endless entertainment through SiriusXM-Ready capabilities (SiriusXM Connect Vehicle Tuner and subscription required). Navigate with ease using the optional iGO Navigation via a Micro-SD card slot (SD card sold separately) and manage up to four accessories directly from the intuitive display. The Stinger HORIZON10 is the perfect blend of cutting-edge technology, robust durability, and superior sound quality, offering an enhanced and connected driving experience.

What's in the Box

10-inch touchscreen display and infotainment system
RadioPro Interface for Toyota Tacoma (2016-2023)
Toyota Tacoma radio dash kit (SR-TAC16HX)
Antenna adapters for satellite and AM/FM radio
SiriusXM Adaptor (retain factory-installed SiriusXM antenna)

Tuner sold separately & not on Stinger: SXV300V1

Custom-fit Toyota Tacoma radio dash kit
Hardware kits
Stinger USB-A (2) & USB-C extension
Installation Guide

Guides

User Guide

Installation Guide

Specifications

GENERAL

Model Number: RB10TAC16X
Operating Voltage: 10.5VDC to 16VDC
Grounding system; Negative Ground
Max current consumption: 15A fused

DIMENSIONS

Radio Module: 177.7 mm x 112.96 mm x 50 mm (WxHxD)
Display: 247.2 mm x 180.56 mm x 36.19 mm (WxHxD)

DISPLAY

10.1- inch Diagonal
16:10 aspect ratio
1280 × 800
Pixels: 1,024,000
Active area 216.96 (W) x 135.6 (H) mm
Operating Temperature (C) -20° to 70°

AUDIO

Load impedance: 4 Ω nominal / 2 Ω allowable
Continuous power output: 18W x 4ch/4 Ω 20Hz to 20KHz, 1% THD at
14.4V
Speaker level adjustment: 0-40 steps
Audio Preamp Output level: 4.5Vrms typical
Audio Preamp 8 Channels: Front 1 Left, Frontl Right, Front 2 Left, Front 2 Right,
Rear Left, Rear Right, Subwoofer Left, Subwoofer Right.
Equalizer: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz
Gain: +/-6dB (0.5dB/step)
Crossover level: 10 steps
Front 1 and Rear output: HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
Slope: 6dB, 12dB, 18dB
Level: 0-15,1db/step
Front 2 output: HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
LPF: 25Hz|40Hz/63Hz|80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
Slope: 6dB, 12dB, 18dB level: 0-15,1db/step
Subwoofer Pre-lineout: 4.5Vrms typical, 7vrms maximum without distortion
LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160H
z/250Hz
Slope: 6dB, 12dB, 18dB
Gain: 0db to 15dB (1dB/step)
Subwoofer level: 0-15, 1db/Step Phase: 0 or 180
Time Alignment for 8 channels: 0 to 133 steps for inches and 0-99 steps for
9.9ms
User Preset EQ: Rock, Hip-Hop, Electronics, Jazz, Pop, Flat.
Source Gain: default 0db, -10 to 10 adjustable, 0.35db/Step.
Volume Settings: Main Volume, Phone Volume, Navigation Volume, Voice Volume, Ringtone Volume adjustable separately.
Supports Internal & External Smart DSP
AKM AK7739 Audio Processor
DAC- Advanced 32bit

USB

USB 2.0 (two)
Max current supply 1.5A
Max storage size: 128GB
USB Class: A
Supports: Video/Audio/Image Media
Playback, Charging, and Firmware Update
USB 3.0 (one)
Max current supply 3А
Max storage size: 128GB
USB Class: C
MSC (Mass Storage Class), MTP (Media Transfer Protocol)
File system: FAT32, NTFS
*Supports: Apple CarPlay, Android Auto, Video/Audio/Image Media Playback, Charging, and Firmware Update
- *When connecting Apple Car Play or Android Auto via USB, only USB-C connection is compatible.

BLUETOOTH

V5.1 dual
4dBm Class2
2.4GHz to 2.48GHz

WIFI

Support lEEE 802.11a/b/g/n/ac
Support 802.11ac 1xl, Wave-2 compliant with MU-MIMO STA mode
Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band

HD RADIO™ FM TUNER

87.9MHz to 107.9MHz
Usable sensitive 3dBuv (mono S/N: 30dB)
SNR: 65dB

AM TUNER

530KHz to 1710KHz
Usable sensitive 25dBuv (mono S/N: 20dB)
SNR: 58dB

4 CAMERA VIDEO INPUTS

NTSC, PAL, AHD 25 & 30 mhz
Mirror Camera Image

ACCESSORY CONTROL

4x Accessory Control w. custom icon, name, & switch behavior

HDMI INPUT

Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720р, 1920*1080i, 1920*1080р

TOSLINK

Output: 48khz Variable

AUDIO

MPEG-1 Audio Layer-3 (mp3)
FLAC (flac)
MPEG-2 Advanced Audio (.aac)
MPEG-4 Audio (m4a)
Windows Audio (wav)
OGG Audio (ogg)
MP1
MP2
AAC
AMR-NB
AMR-WB
APE
PCM / ADPCM
VORBIS
OPUS
WMA
AC3/DDP
DTS

VIDEO

MPEG-4 Video, H.264 (.mp4)
Microsoft AVI (.avi)
MPG Video (.mpg)
MPEG Video 1/2 (.mpeg)
VOB DVD (.vob)
Flash Video (.flv)
MPEG-1
MPEG-2
H.263
H.264
H.265 (HEVC)
WMV 7/8
VC-1
VP8
M-JPEG


JPEG (.jpg)
CompuServe GIF (.gif)
PNG (.png)
JPEG (.jpeg)
Bitmap (.bmp)

BACKGROUND IMAGE (USER)

File Format: JPG / PNG
Resolution: 1280 x 800

Vehicle Fitment Guide

New Column	New Column	New Column	New Column
2016-2023	TOYOTA	TACOMA	ALL TRIM LEVELS

New Firmware

Stay up-to-date with the latest firmware for your HORIZON10! Get the newest features, enhancements, and performance improvements by visiting the product information page.

Click here to be redirected!

Warranty Information

We have a 30-dayeasy return policy for all purchases.

We provide a shipping label for defective productsupon your return request at no cost. Non-defectiveproducts will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation!All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note:Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.

FAQs

Will it retain factory vehicle settings & features?
No, only kits listed as “Fully Integrated” will retain factory features.

Will it retain satellite radio & factory hot spot?
No.

Does the HEIGH10/HORIZON10/HORIZON12 retain the factory microphone?
No, aftermarket radios have external mics as the factory ones are built to the specifications of the factory radio and are not interchangeable.

*Don't see your question? Scroll down and ask one yourself.*

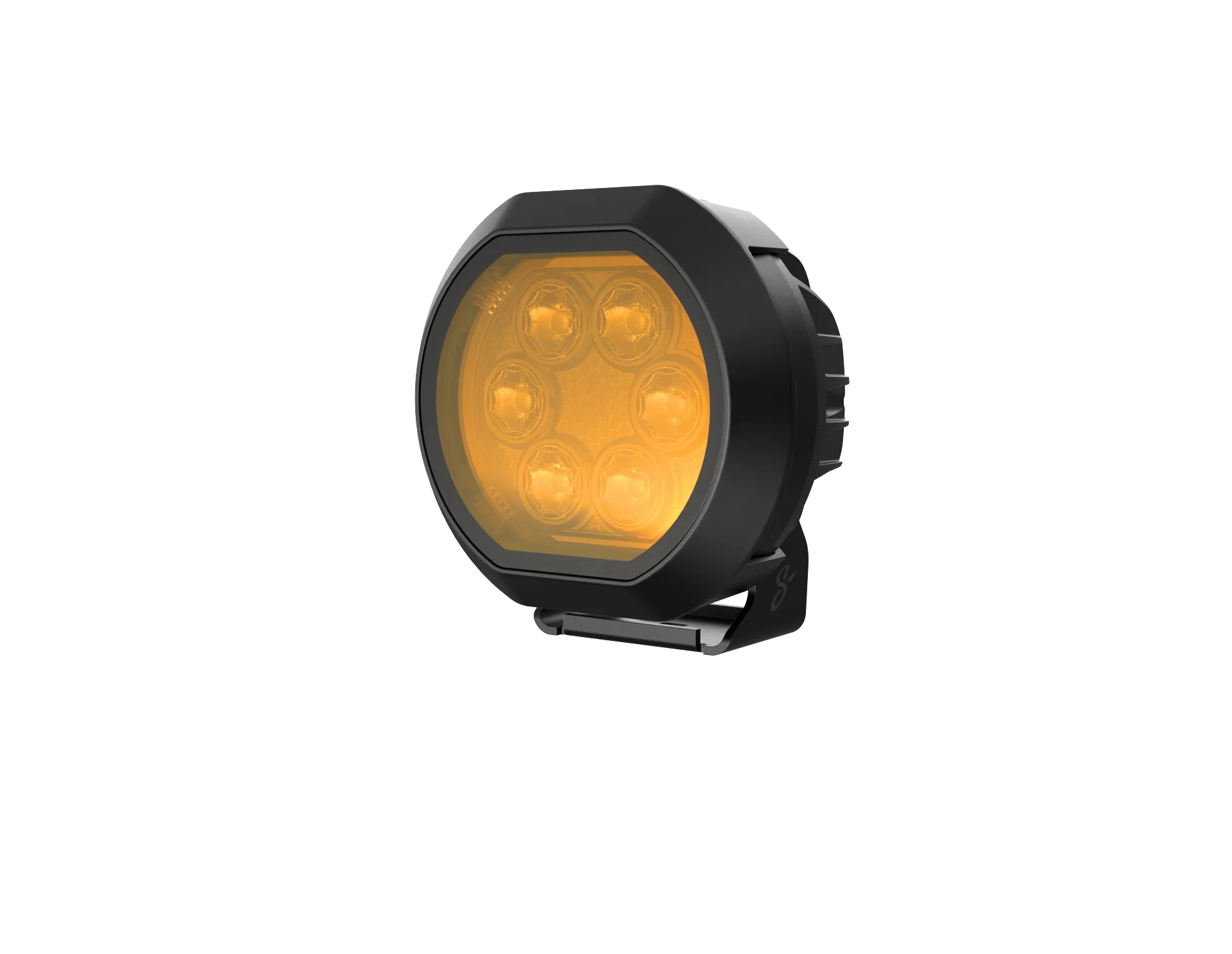

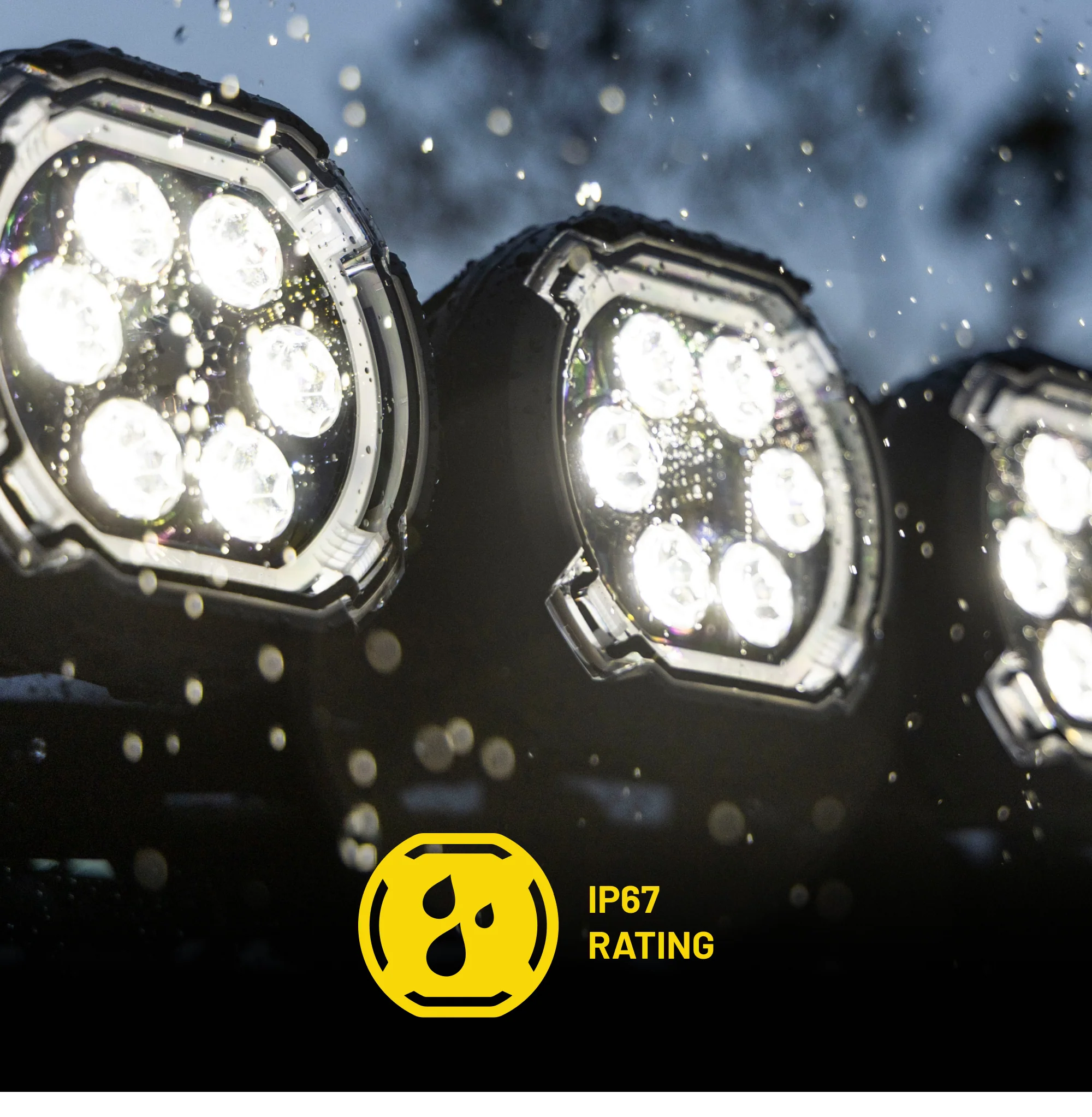

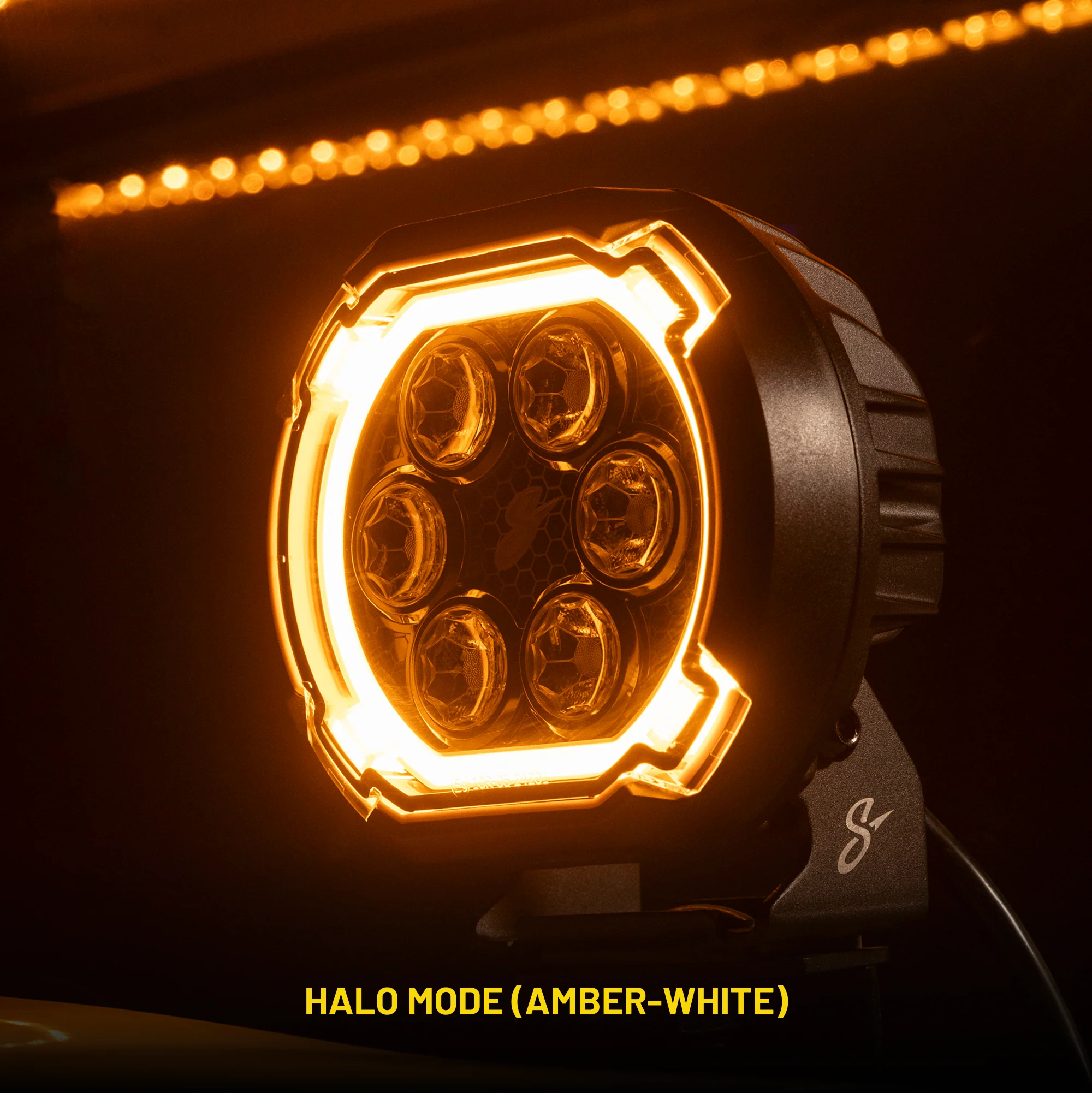

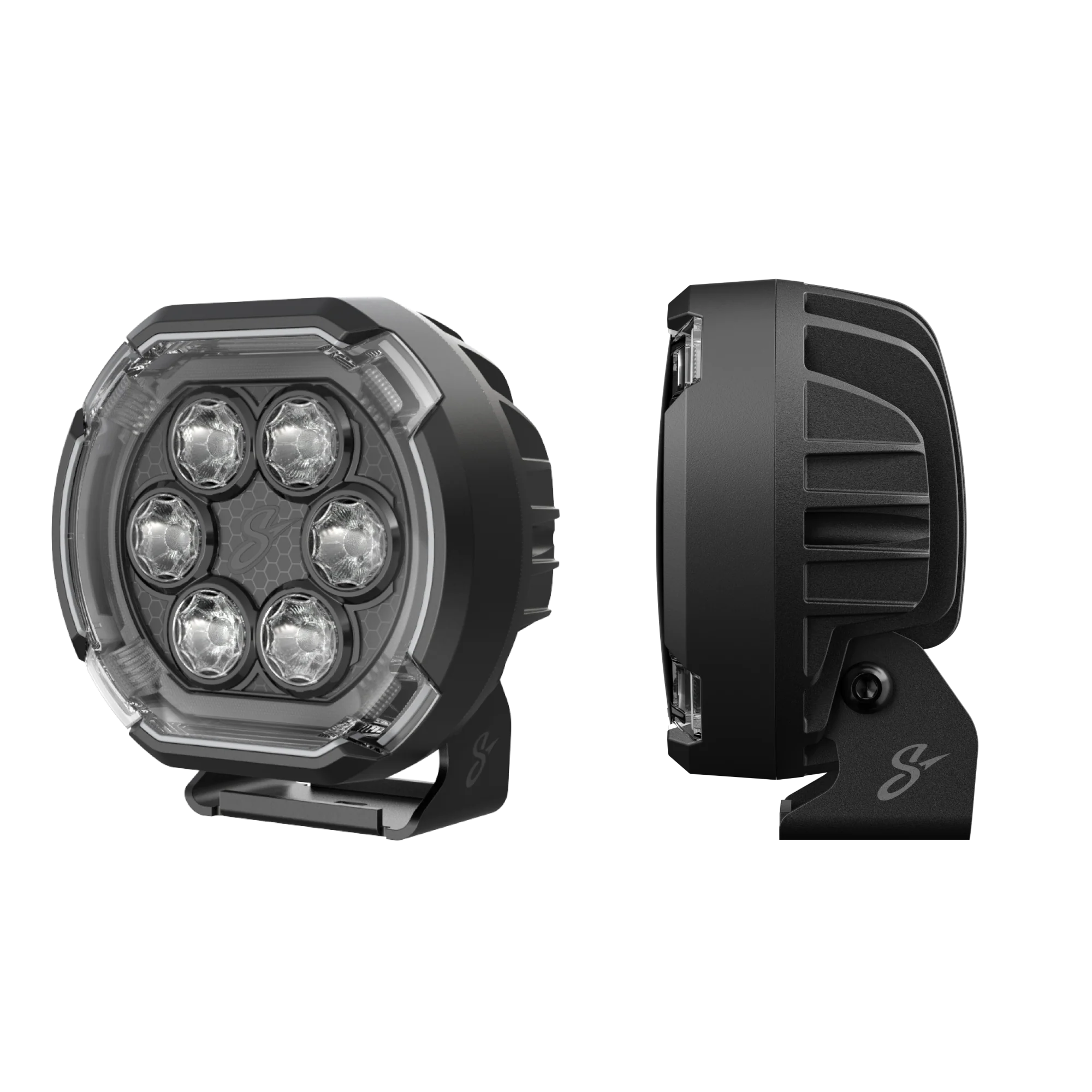

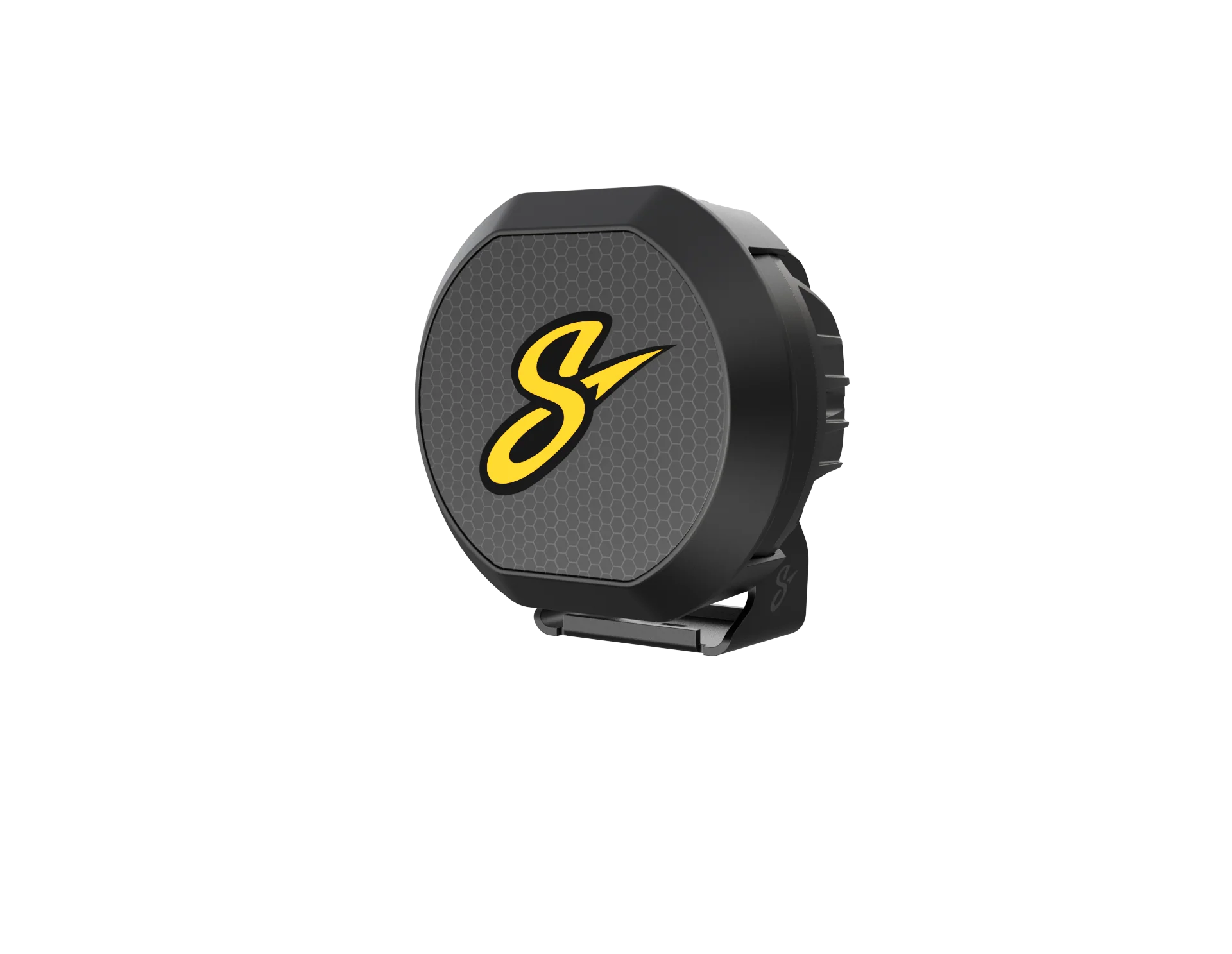

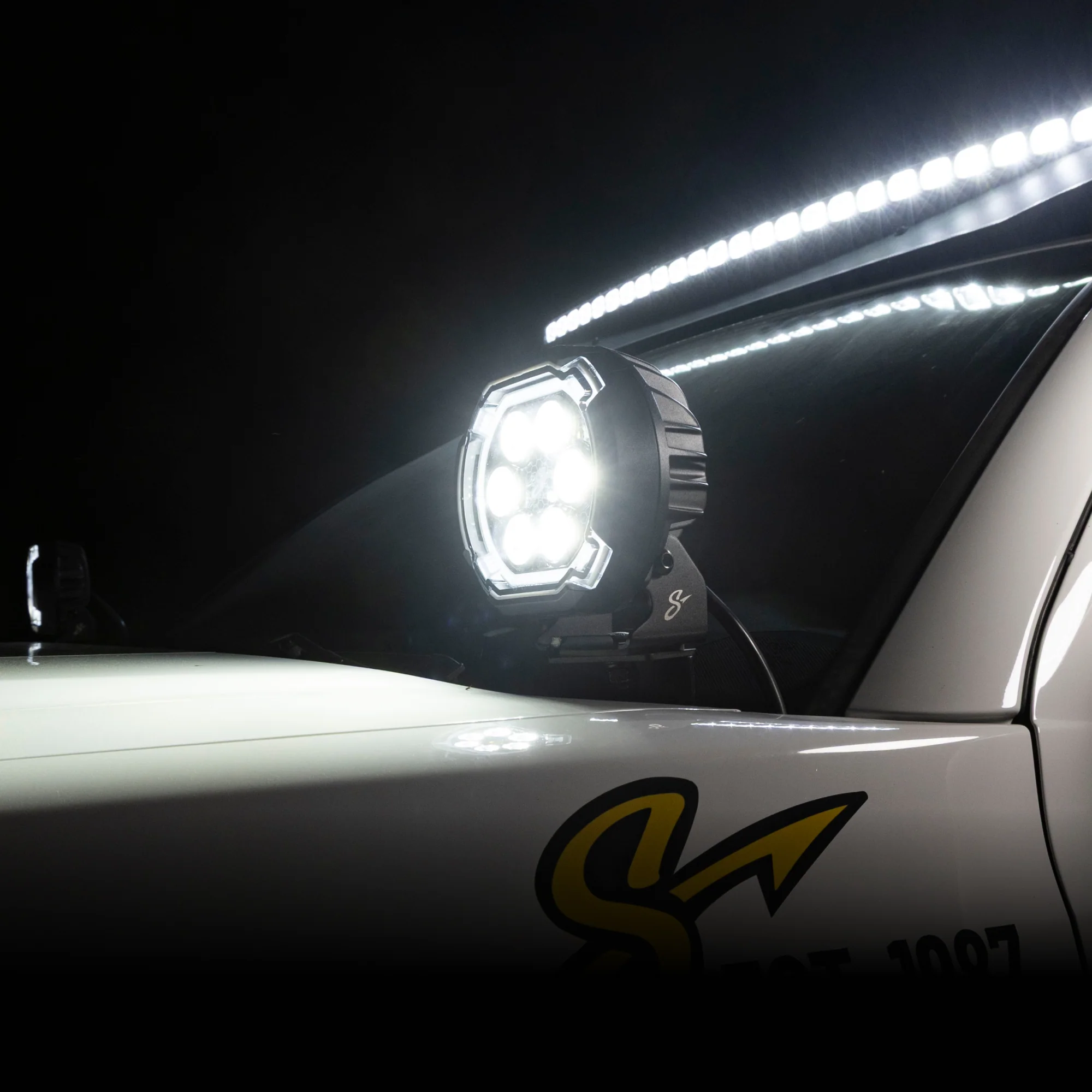

HEXCORE 6" LED Pod Lights, Driving Beam Amber & White (Pair)
